Cardboard Box Automatic Folder Gluer with Pre

Cardboard Box Automatic Folder Gluer with Pre

YL-650PC-B Automatic Folder Gluer Specification Folding specification
Basic Info.
Model NO. YL-650PC-B
Thickness of Folded Box 20mm
Compressed Air 6 Bar
Inching Speed 40m/Min
Weight 6t
Max Width 650mm
Folding Wany Belt Folding
Air Compressor Capacity 10m3
Air Tank Capacity 60L
Power 21kw/380V
Suitable Paper 200-800GSM Cardboard, E/ F /N Corrugated Board
Paste Solute Property
Feeding Way Continuous Automatic Paper Feeding
Function Liner, Crash Lock Bottom, 4/6 Corner Box
Speed Max 400m/Min
Brand Sinosun
Transport Package Seller Standard Packing
Specification 15000 mm*1650 mm*1800 mm(L*W*H)
Trademark SINOSUN
Origin Guangdong, China
HS Code 8441309000
Production Capacity 200/Year
Product Description
YL-650PC-B Automatic Folder Gluer
Specification
ModelYL-650PC-B
Suitable paper200-650 gsm cardboard
Max width650mm
Box typeStraight line , crash-lock bottom box, double sides
Optional for 4/6 corners box
Folding wayAutomatic Continuously Feeding
Glue typeSolute style
Max. speed400m/min
Required power21KW, AC220V/380V
Weight6T
Dimension15000*1650*1800(L*W*H)
Inching speed40m/min
Compressed air6 bar
Air compressor capacity10m/3
Air tank capacity60L

Folding specification

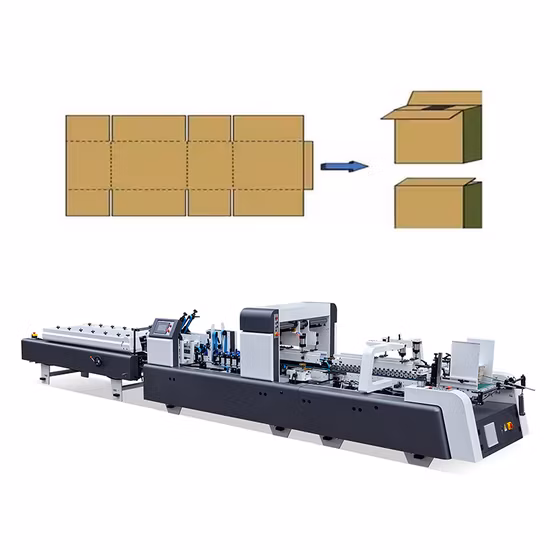

Cardboard Box Automatic Folder Gluer with Pre-Folder and Crash Lock Bottom Function



Four corner(optional)MaxMin
L800mm130mm
W650mm150mm
H150mm20mm
Six corner(optional)MaxMin

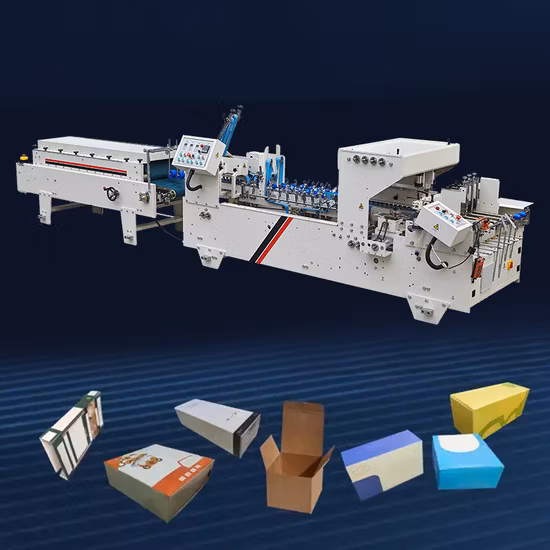

Cardboard Box Automatic Folder Gluer with Pre-Folder and Crash Lock Bottom Function


L800mm130mm
W650mm250mm
H150mm30mm
  • Function and Profile
    1. Equipped with full color touch screen monitor, main machine, transfer and conveyor can control the speed automatically and synchronization trace parameter setting system.
    2. The machine adopt movable and adjustable operating function in each section. Equipped with elaborate tooth lever design. It is simple, convenient and efficient for one man operation.
    3. High power stepless speed control frequency conversion and high-efficiency power motor, the highest speed can reach 400 meters/min, power transmission adopts powerful belt transmission, with low noise, high efficiency, easy maintenance and economic efficiency.
    4. Each functional components of the machine adopt modular design, which is convenient to assemble, convenient to replace and debug products, convenient for beginners to master technology, and easy to learn.
    5. Unique design of the upper and lower glue tank and coordinate with the need of products.
    6. Compression and conveyor section equipped with adjustable the pressure design according to the needs of the products. Equipped with a set of special soft belts to ensure uniform pressure and perfect quality.
    7. The machine adopt photoelectric counting, which can be used for total or quantitative counting, and equipped with kicker mark recognition device.
  • Partial Mechanism Function Description
  • Feeder
    Independently motorized friction feeder with variable speed Adjustable vibration motor Side feed gates fully adjustable to the width of the blank Two adjustable front feed knives

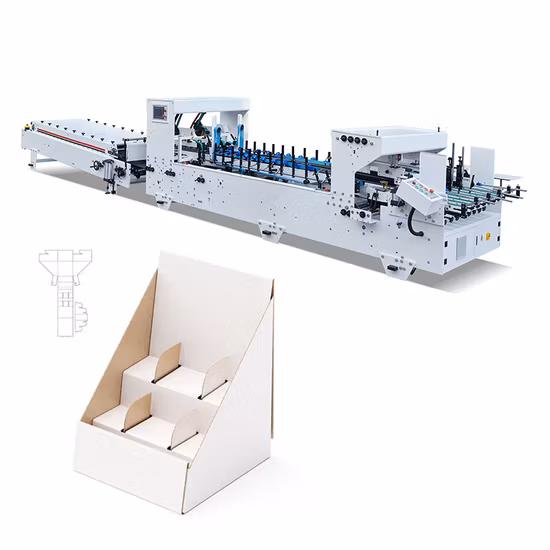

    Cardboard Box Automatic Folder Gluer with Pre-Folder and Crash Lock Bottom Function


    Aligner section
    1. Independent section with an unparallel lower carrier that guides the box to a parallel handrail that allows a perfect blank alignment.

    Pre-folding section
    1. Left upper left 180°pre-folded
    2. The third indentation line 135°pre-folding
    3. 1st and 3 rd crease openers.
    Bottom of the hook
    1. The whole set of frontal lock device ensures the smooth and accurate operation of the bottom lock.
    2. B-type lock box accessories.
    Final folding unit
    1. Smoothly and accurately finish the second fold line, the fourth fold line 180 °combined.
    2. Outer folding belts adjustable up to 180°with variable speed.
    3. Two upper and two lower carriers with 25mm lower and 30mm outer belts.
    4. Width wise adjustable heavy duty compression rollers.(optional)

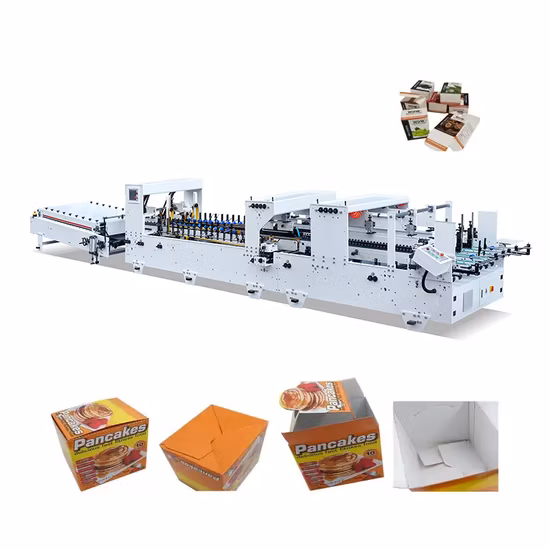

      Cardboard Box Automatic Folder Gluer with Pre-Folder and Crash Lock Bottom Function

    Output unit
    1. Upper and lower drive mechanism for lengthwise adjustment
    2. Equipped with automatic belt tension-adjusting system
    3. Continuous and automatic box collection mechanism that ensures a neat transfer to the press section, guaranteeing a well aligned flow.

    Transmission(4.6m)
    1. The speed of the delivery pressure part can be adjusted automatically or manually according to the speed of the host machine.
    2. Depending on the length of the box, the output pressure part can move back and forth

    Cardboard Box Automatic Folder Gluer with Pre-Folder and Crash Lock Bottom Function
