Basic Info.

Model NO.	DBGS-320
Application	Paper Packaging Materials, Stickers Products, Rotary label Die Cutting
Magnetic Cylinder	120teeth 1/8 (Standard)
Length of Die Cutting	50mm~330mm
Max Rewinding Dia.	φ700mm(About 2000meters)
Overall Diameter(L×w×h)	3400mm×1200mm×1500mm
Weight	2500kg
Motor Power	8 Kw
Max Die Cutting Area	350mm×290mm (L×w)
Max Unwinding Dia.	φ700mm(About 2000meters)
Paper Width	80mm---300mm
Accuracy of Cutting	±0.1mm
Max Speed	65m/Min
Transport Package	Packed with Seaworthy Wooden Cases
Specification	3400mm× 1200mm× 1500mm
Trademark	DABA
Origin	Ruian, China
HS Code	8441100000
Production Capacity	10sets Per Month

Product Description

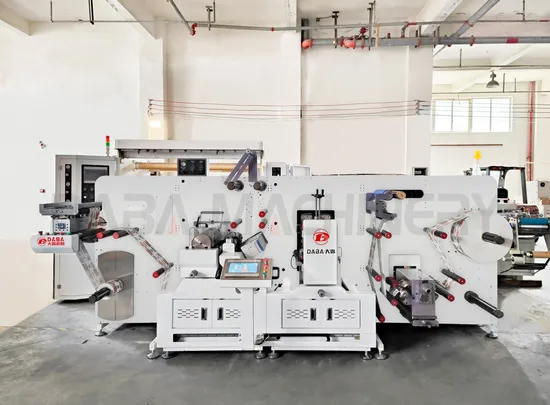

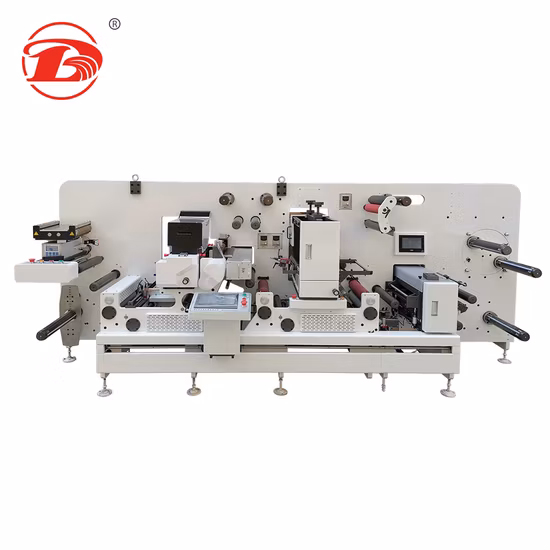

DBGS-320 Rotary Die Cutting and slitting Machine

1.Application
It is suitable for cutting various materials, double sided adhesive, plastic-sided, self-adhesive labels, foam, film, foil, and so on.Applicable to the electronics, automotive, medical, and printing products processing.

2. Functional characteristics:
A. speed: 0-65m/min, max width of original 330 mm.B. Precision of die cutting: ±0.01mm, the precision of slice: ±0.01mmC. Max sizes of finished die cutting:300mm*290mm, min width:80 mmD. Winding/rewinding tension controlled by the computer fully automatically, its max tension: 15NE. The operating panel adopts 5.7 inch color touching interfaceF. It can operate the fully or semi cutting working( when operating, needless to adjust the pressure or others)G. It can finish the semi cutting. Its min. thickness: 0.025mmH. It can count meter/amount with the function of meter/ amount full to stop as well as no feeding to stop.

3. Main devices:
1. 1 sets of die cutting work station .2. The work station drive by 3 Yaskwa Servo motor .3. 2 sets of winding/ rewinding systems, ( converter, magnetic powder clutch)4. Control color touching interface5. Power of equipment: 8 kw

4.Main Specification

Max Speed	65m/min
Accuracy of Cutting	±0.1mm
Max Die Cutting Area	350mm×290mm (L×W)
Paper Width	80mm---300mm
Max Unwinding Dia.	φ700mm(about 2000Meters)
Max Rewinding Dia.	φ700mm(about 2000Meters)
Magnetic Cylinder	120Teeth 1/8 (Standard)
Length of Die Cutting	50mm~330mm
MOTOR Power	8 KW
Overall Diameter(L×W×H)	3400mm×1200mm×1500mm
weight	2500KG

DBGS-320 semi Rotary Die Cutting and slitting Machine Web guide system

DBGS-320 semi Rotary Die Cutting and slitting Machine die cutting unit

DBGS-320 semi Rotary Die Cutting and slitting Machine slitting unit

DBGS-320 semi Rotary Die Cutting and slitting Machine conveyor


DBGS-320 semi Rotary Die Cutting and slitting Machine During Assembly


DBGS-320 semi Rotary Die Cutting and slitting Machine at workshop


DBGS-320 semi Rotary Die Cutting and slitting Machine at Exhibition



Our Service for DBGS-320 semi Rotary Die Cutting and slitting Machine

1. Purchase Service

DABA COMPANY have a specialize and efficiency working team.If you are new on the printing and packing area ,Some samples of your products could be shew to us will be appreicate ,we will give you specialized suggestion of whole work.

2. Shipping Service
DABA COMPANY have a spcialized and independent department which just for shipping the buyer's goods. The workers are knowing T/T,L/C Items well.all Exported documents could be made perfectly .

DABA COMPNAY copperate with the most famous shipping company in China also. They could provide the best and economic shipping ways to the buyer's port.

3.Installation Services
Installation Services are available with all DABA Company machines.DABA Comapny will dispatch technician to The Buyer's factory to installation and preoperation of machines .But the buyer need to surpply the round trip tickets, food, hotel cost.

4.Clients Training Services
DABA Company advise The buyer could send own technican come to DABA factory to learn how to operate machines.DABA Company technician will teach and train the lerners hand by hand till he can operate machine by himself.
Obviouslly, Traning within Installation period is acceptable.

5.After Sales Service
DABA Company machines guarantee time is one year.
Many easy broken spare parts will be prepared in the tool box together with machines.
Any parts broken ,Just a pictures or a videos.
The new free parts will reach within 3-7 Express working days .

SHOULD ANY FURTHER INFORMATION BE REQUIRED, PLEASE FEEL FREE TO CONTACT WITH US.
